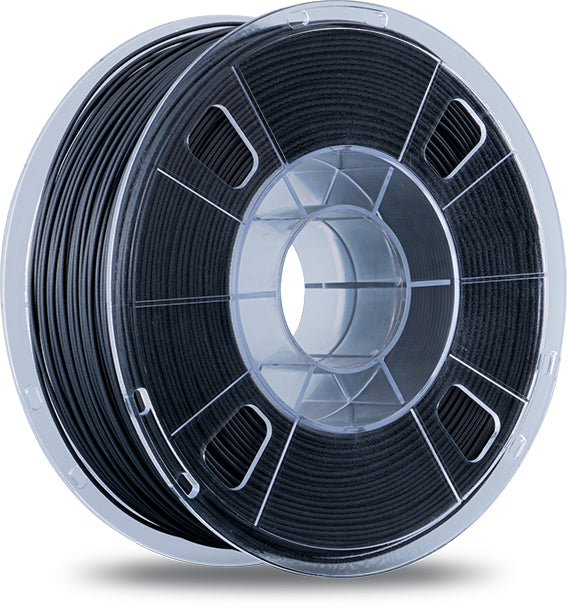

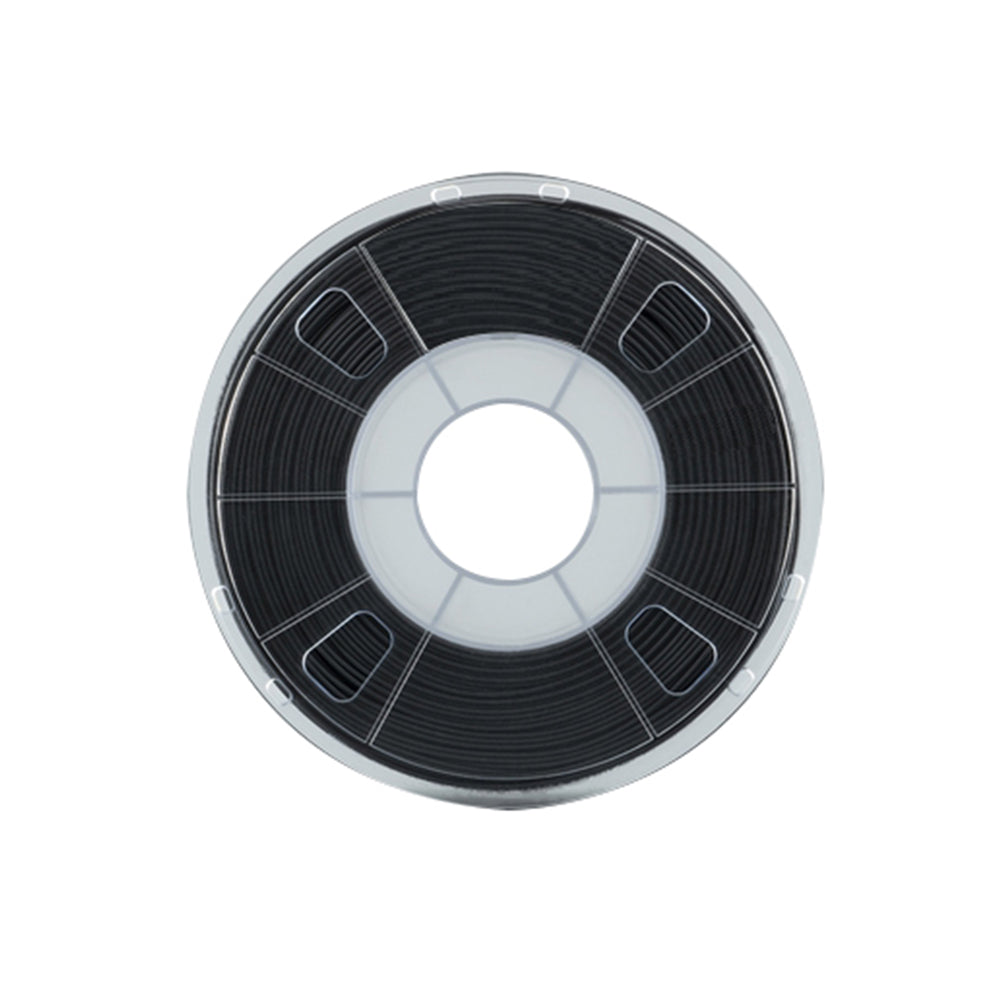

1.75mm PA12-CF Carbon Fiber Filled Nylon 3D Printer Filament
1.75mm PA12-CF Carbon Fiber Filled Nylon 3D Printer Filament
Couldn't load pickup availability
WISEPRO PA12-CF is specially developed for FDM 3D printing process, and its substrate material is PA12 long-chain nylon, which has low density, low moisture absorption, high strength, high abrasion resistance, excellent chemical resistance and high heat resistance. It also has good dimensional stability, no warpage and no shrinkage during the printing process, and can be used with FreeS-Green Quick-Remove support filament to solve the problem of poor molding effect on the support surface of complex models.
Product Advantages
1, Smart Fiber Reinforced Technology
WISEPRO controlling the dispersion and distribution of chopped carbon fibers within the material matrix during the extrusion process, the fibers form a mesh skeleton structure within the material and bear most of the load transferred by the material matrix. Smart Fiber Reinforced Technology greatly improves the mechanical properties and heat resistance of the material, and releases the internal stress during the printing process through the fiber mesh structure, resulting in good dimensional stability of the printed part and no warpage.
2, Low Mositure Sensitivity
WISEPRO PA12-CF based on modified PA12 long-chain nylon, whose saturated moisture absorption rate is only one tenth of ordinary PA6, completely solving the defects of the mechanical properties and dimensional stability of nylon materials that change greatly after absorbed moisture.
3, Super Abrasive Resistance
WISEPRO PA12-CF has a low coefficient of friction, self-lubricating properties and excellent wear resistance, which can easily meet all kinds of high-strength gears or industrial applications with high wear requirements.
Additional Suggestions
1. Nylon material is very easy to absorb moisture within the environment, and printing after absorbing moisture will result ozzing, extruding with bubbles and rough surface appearance, thus reducing print quality. It is recommended that put the filament into a dryer box (humidity below 15%) immediately after opening the PA12-CF vacuum foil bag for printing. Please put the unused filament back into the original aluminum foil bag for sealed storage.
2. After the material is damp, there will be more printing ozzing, bubbles extruded and rough printing surface. Please dry the filament in an oven at 80-100℃ for 4-6h to restore the printing quality of PA12-CF.
3. It is recommended to use hardened steel and above grade nozzles, which can effectively improve the print quality. Besides, it is recommended that the thickness of the heating block is longer 12mm.
4. After the printing is completed, the printed part can be annealed to further improve the strength of print part. Annealing conditions: leave printing part in an oven at 80-100℃ for 4 to 8 hours and cool to room temperature naturally.
